Foreign objects in the overhead lines of the power grid pose a great threat to the normal operation of the power grid, and are also one of the main reasons for the unplanned outage of the power grid caused by short-circuiting of metal wires and single-phase grounding.
However, conventional tools and methods are relatively inefficient in removing foreign objects in the power grid. Operators often need to perform high-altitude, high-voltage live work, which poses great work risks and takes up a lot of human and material resources.
The principle of laser obstacle remover is to use the laser beam to irradiate the foreign object to burn and vaporize it, so that the foreign object can be separated from the power grid.it can perform remote obstacle clearing, which simplifies the obstacle clearing process and improves the operator's work safety.

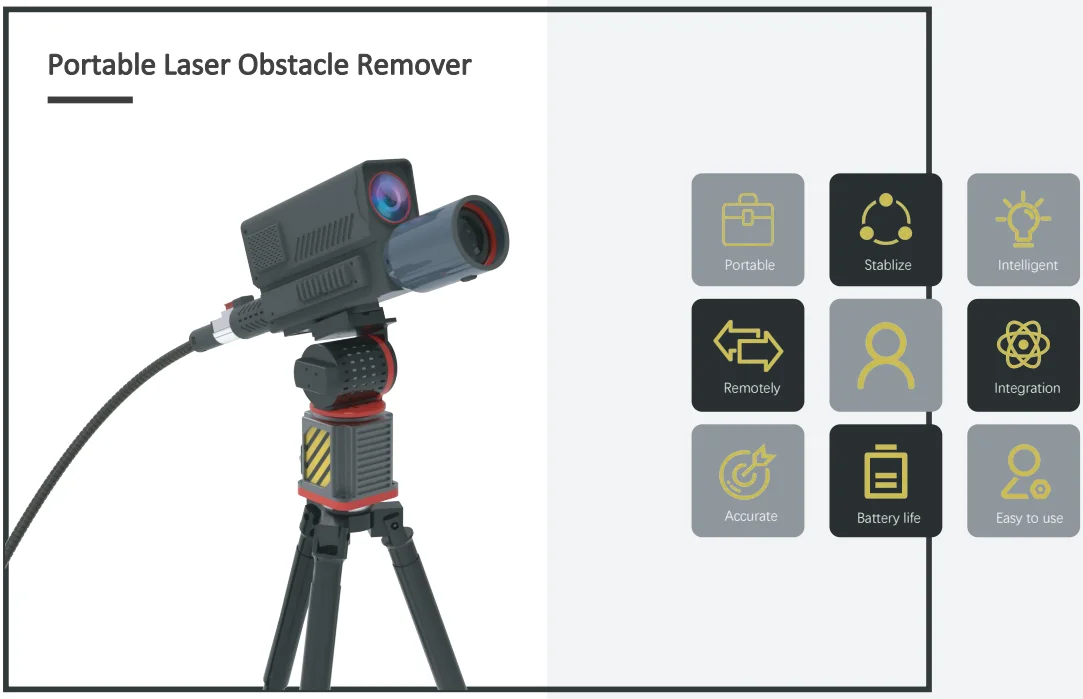

The six generation RF Series portable laser obstacle remover is newest laser system ,the system can realize long-distance(large than 500meters), high-power (350w -1000W) operation. The integrated design is easy to carry outdoors,and the operation is simple and convenient.

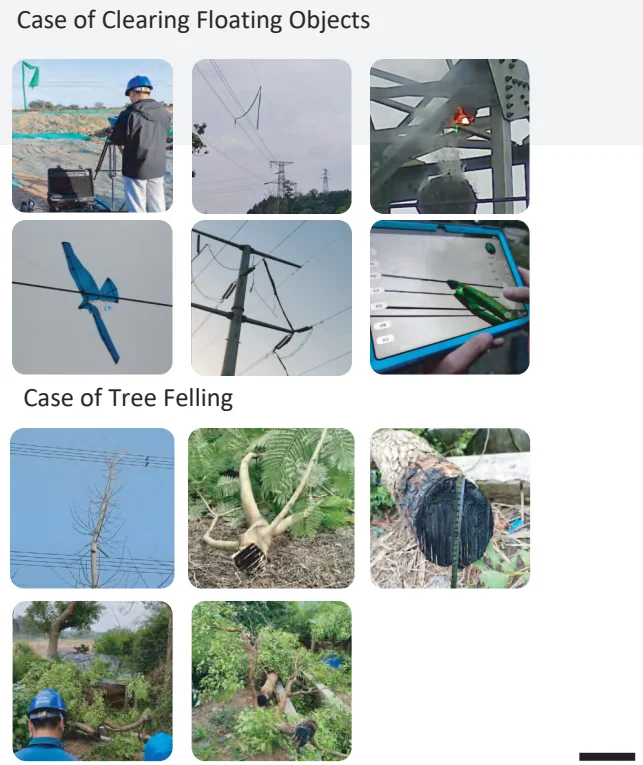

At present, it is mainly used to cut tree and remove foreign objects of power grid such as bird nest,skites,banner,cloth strips, kite strings, plastic bags, advertising cloth,, branches and other foreign objects on overhead lines of the power grid system..

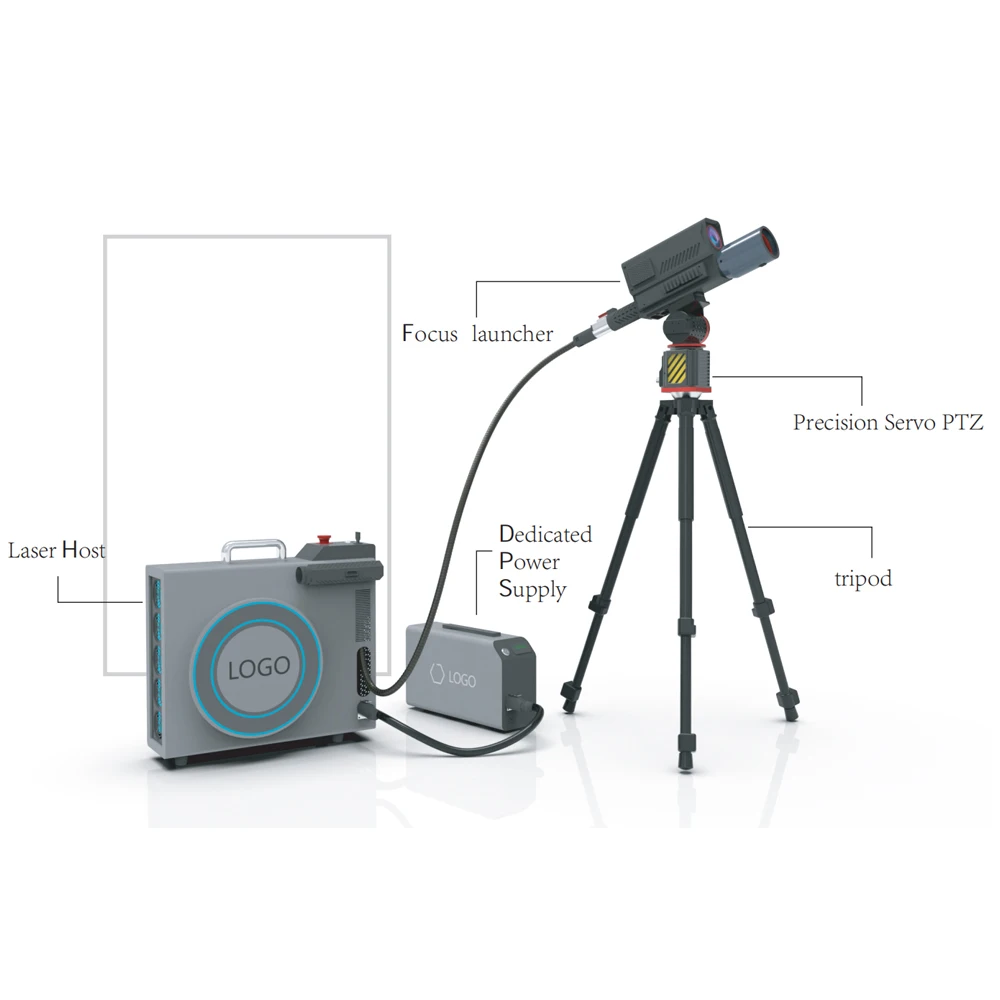

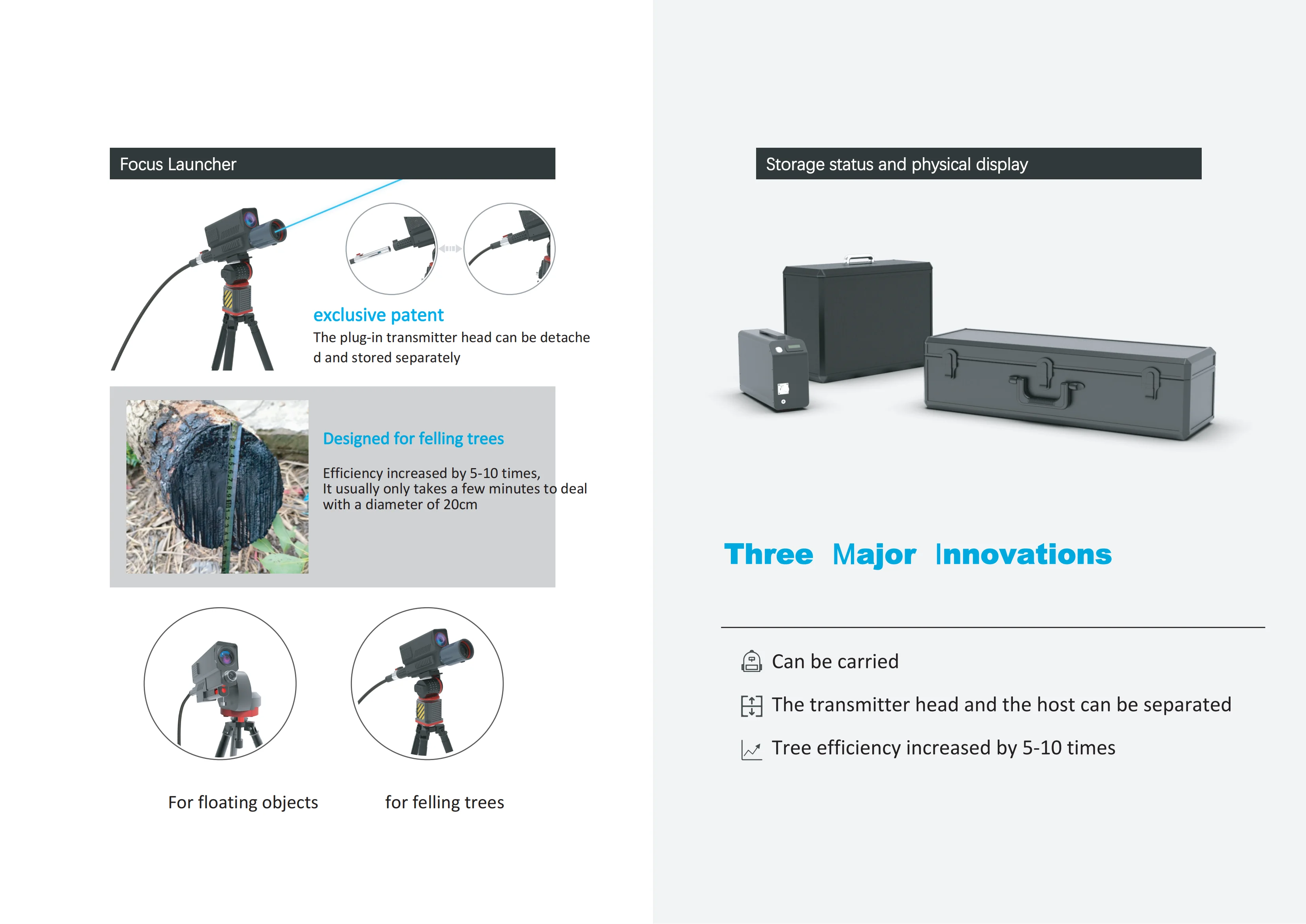

Laser Host The emitter head and the laser host are designed separately, and Portable Laser Obstacle Remover the optical path is automatically protected when separated. It subverts the traditional trolley box product form, and its volume and weight are reduced by about 50%. Traditional products require at least 2 people to lift, but this product can be carried by only 1 person. The heat dissipation of the laser is an important and difficult point. The design of the trolley box has natural defects for heat dissipation. However, this product adopts an all-metal shell, which greatly improves the heat dissipation performance and can easily cope with the high temperature in summer.
Advantages:

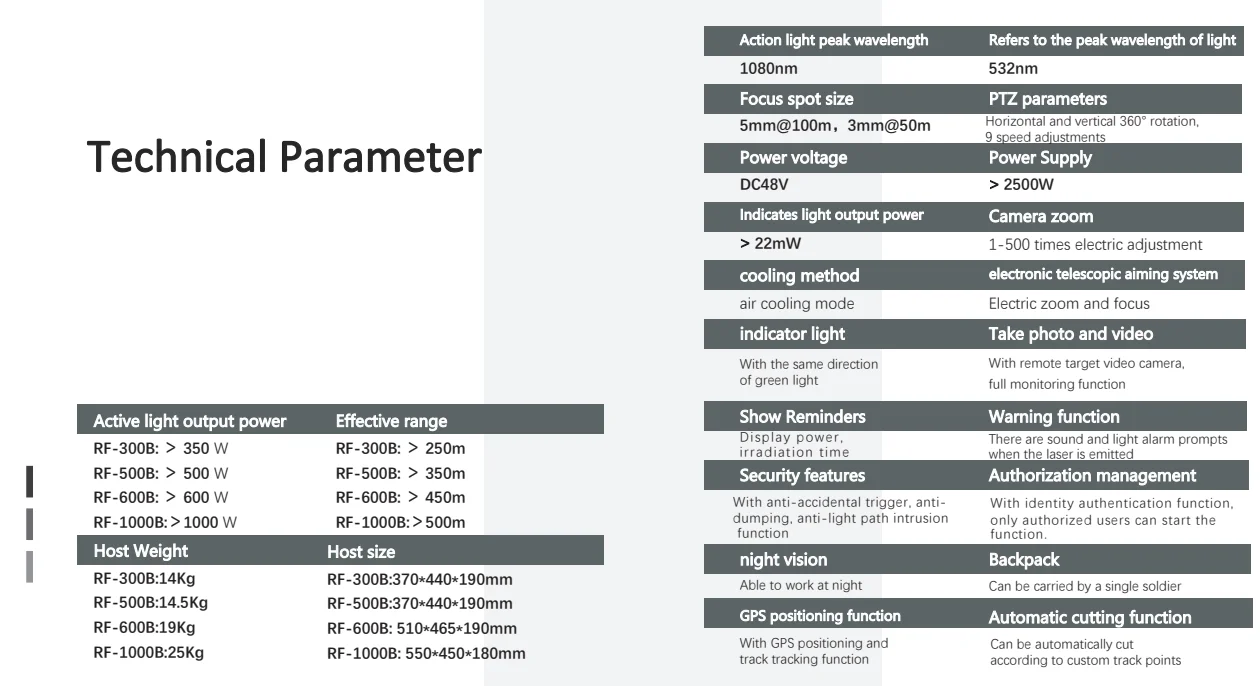

Light weight: the 300w mainframe weighs only 15kg,the 500w only 18kg.
Small size:The host is only 370*440*190mm

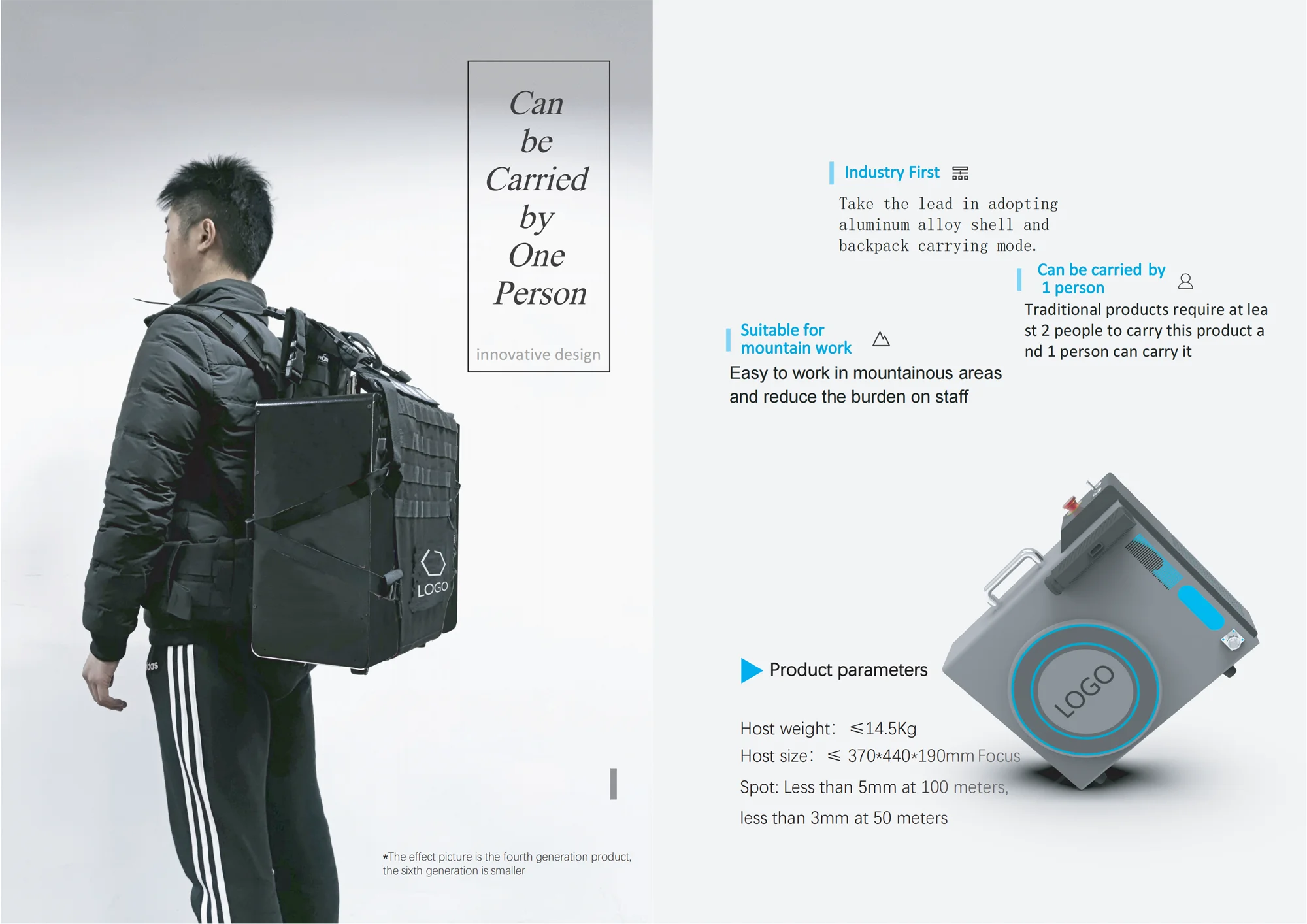

Can be carried by only 1 person: The emitter head and the laser host are designed separately.super available to carry .
Aluminum shell:greatly improves the heat dissipation performance.
Features
1. It can realize remote (working distance 50-500 meters) operation.
Short operation time (several seconds to minutes), no need to climb the power grid；
2. No need for power outages and does not affect the normal operation of the power grid ；
3. Remote monitoring function, on-site operation status, equipment status and other information are wirelessly transmitted back to the platform in real time ；

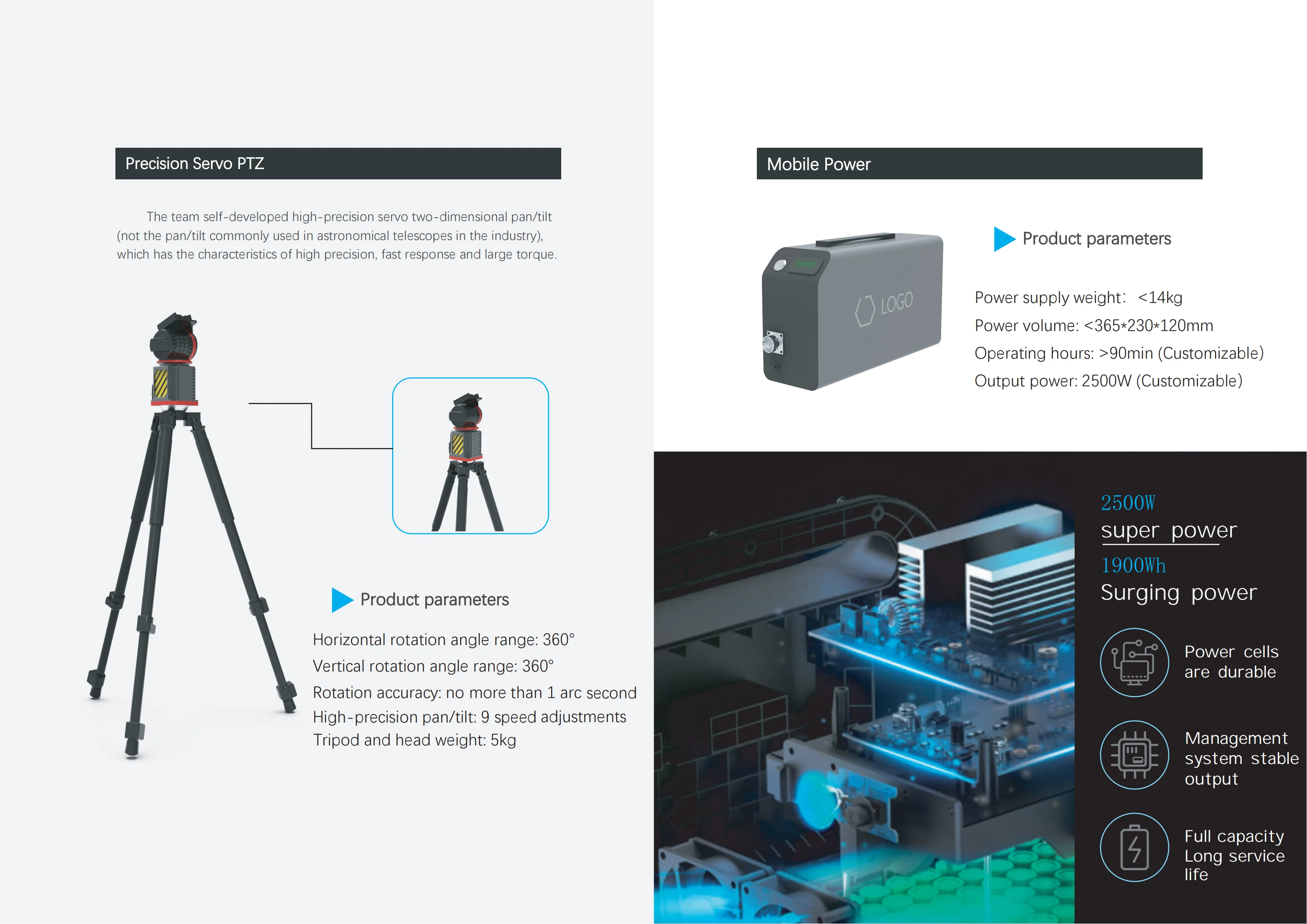

4. Laser light output direction is controlled by precision electronic Tripod head to realize laser precise control ;
5. Night vision function to meet the needs of night work;
6. The whole process of clearing obstacles has video recording function;

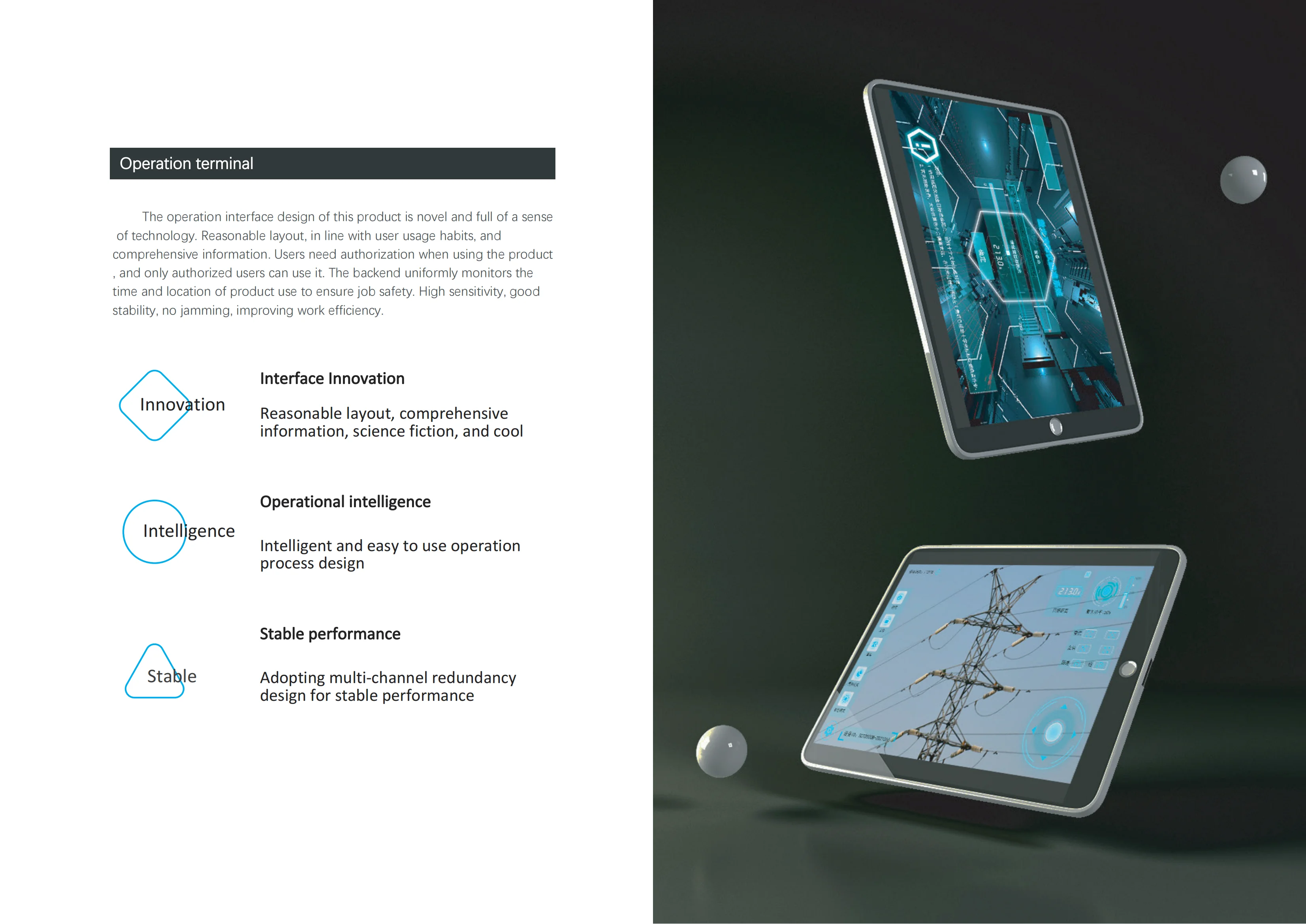

7. Simple operation, work control through tablet computer or mobile phone Bluetooth;
8. Equipped with a high-magnification telescope, red and green two-color auxiliary indicator guarantee clear work throughout the day;
9. Stable performance, can realize continuous work in high temperature environment.

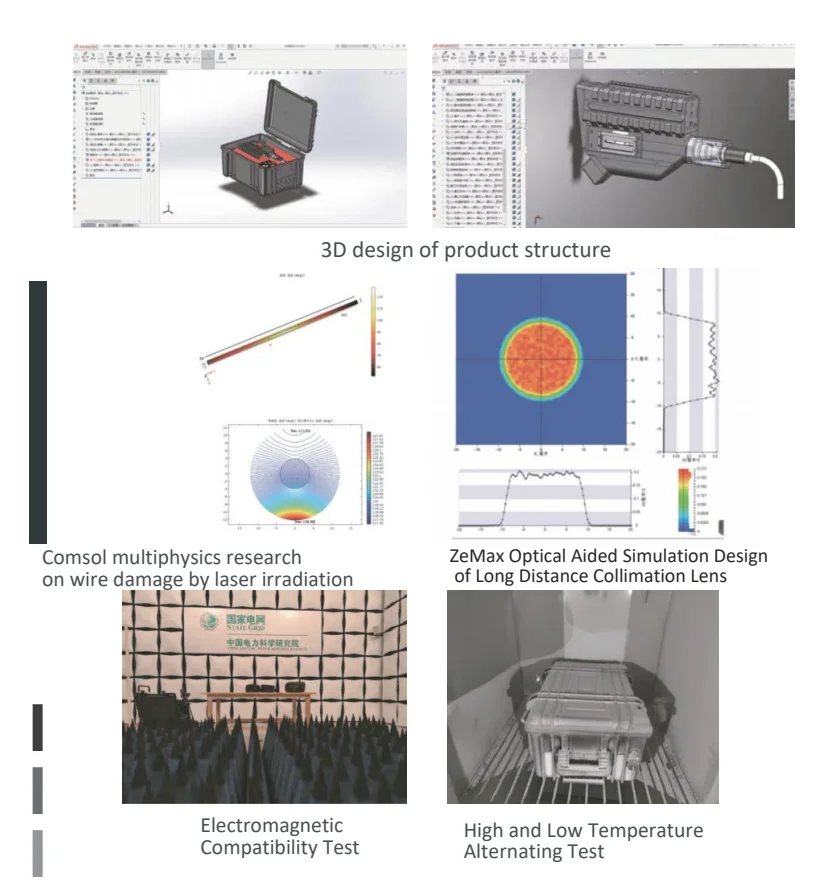

Overview of Research and Development
